Project Description
Beam Spot Light 380BSW
- Input Voltage(V): AC100V-240V,50/60HZ
- Light Source .: Osram Platinum Bubble 371W, Phoenix original 380W bulb, average life 1500H
- Light Source Specification : OSRAM SIRIUS HRI 350
- Color Temperature(CCT): 7000K
- Light Outlet Angle: 2.9-48°
- Horizontal Scanning: 540°(16bit precision scanning)
- Vertical Scanning: 270° (16bit precision scanning)
- Color Disk: A color disk, each color disk consists of 11 color plates + white light, can be half color effect, linear color conversion and two-way variable rotation rainbow effect
- Color Disk positioning: with hall, magnet positioning and arbitrary Angle automatic error correction function.
- Fixed Pattern Plate :11 pattern effects + white light;
- Rotating pattern plate: 1 rotating pattern plate has 7 pluggable glass patterns + white light, variable speed jitter, two-way flow effect;
- Effect plate: one effect plate, 4 effect patterns;
- Focusing: high precision glass optical lens, electronic linear HD adjustment;
- Control channel: 20/25
Product Feature:

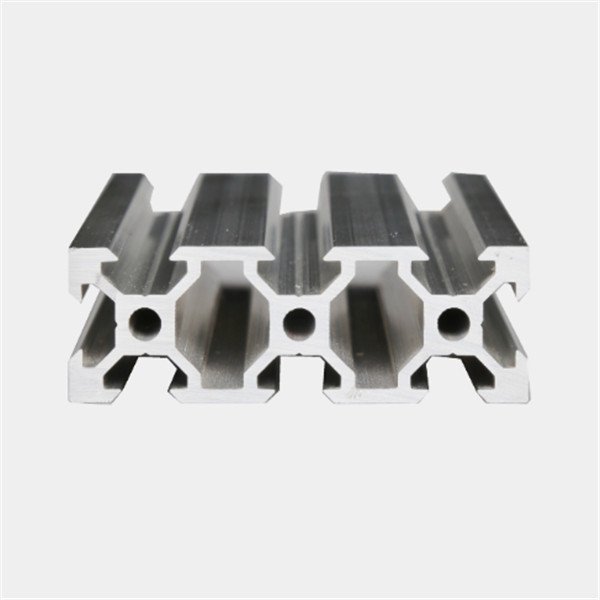

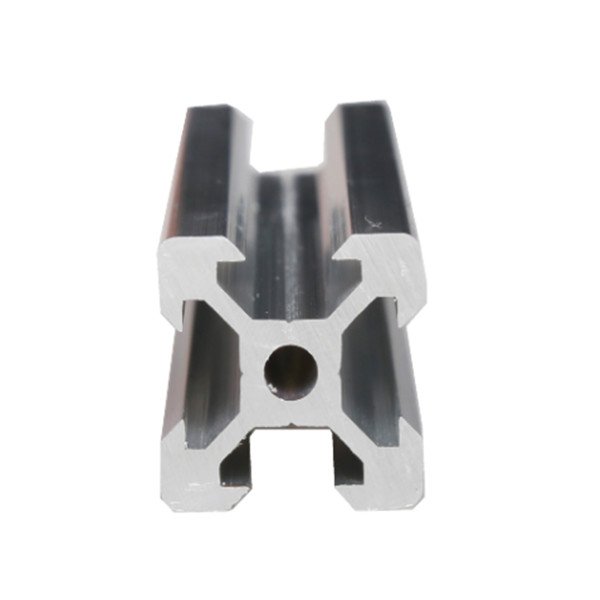

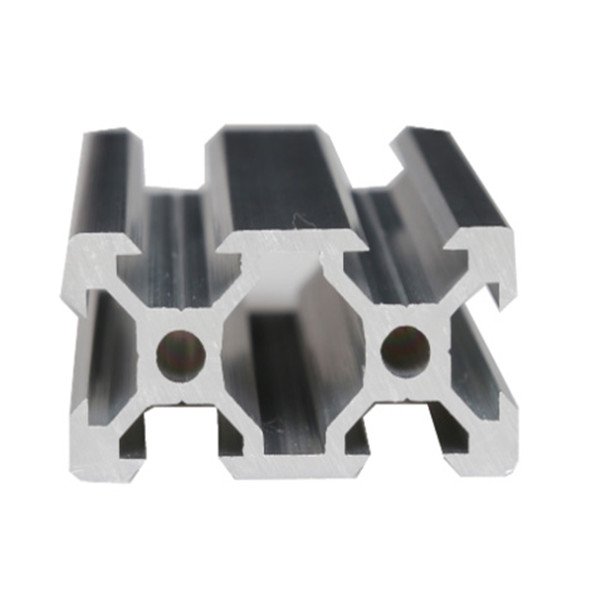

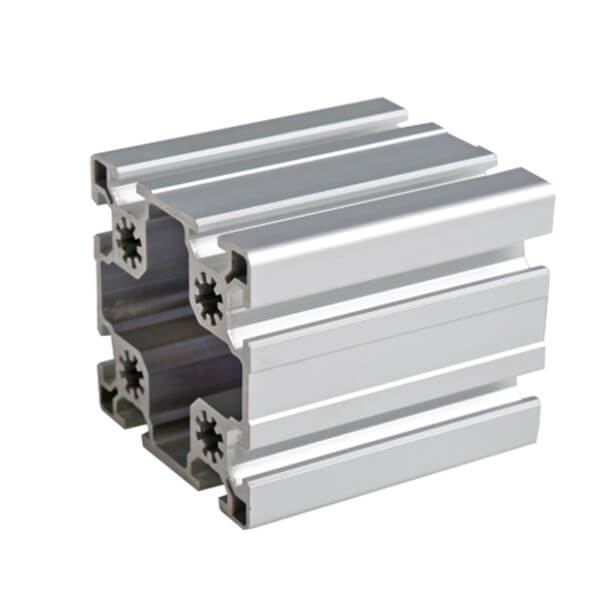

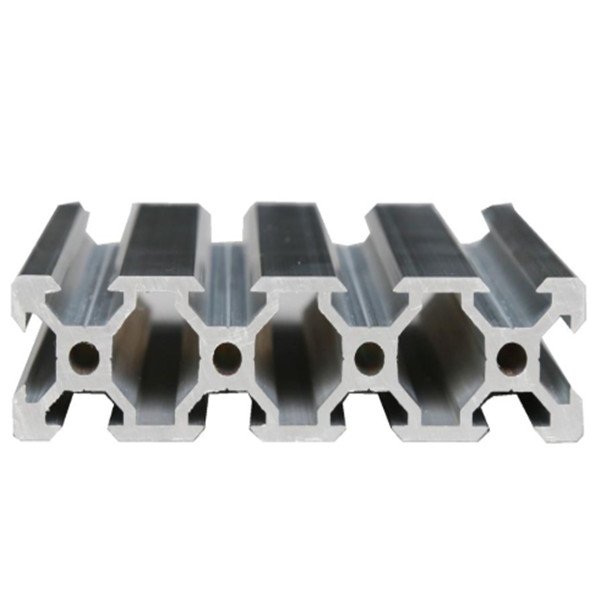

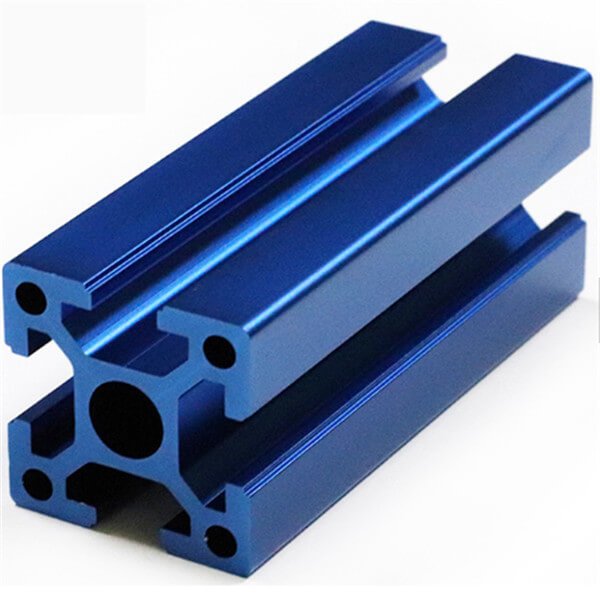

T -slot profile V-slot adopts corrosion-resistant 6063-T5, 6061-T6 Aluminum Alloy with a clear anodize finish. Not only do our Slotted Aluminum Profiles come in a variety of standard lengths and sizes, we also offer cut to length services to better meet your projects specific needs. Shenghai Slots are also available in smooth and grooved profiles and a variety of colors.

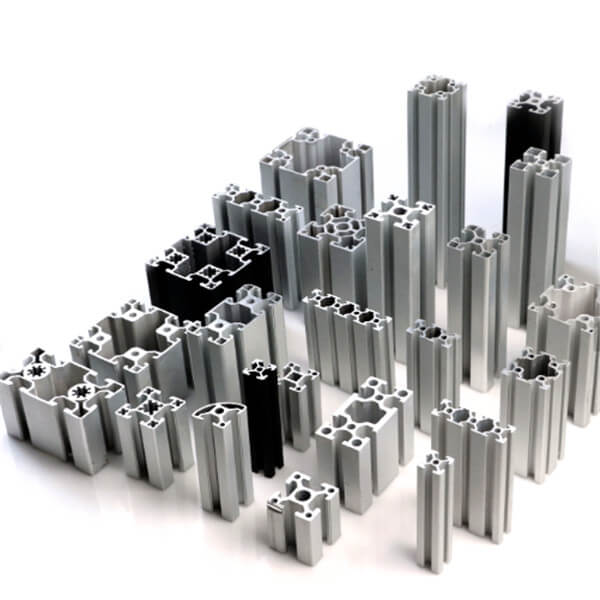

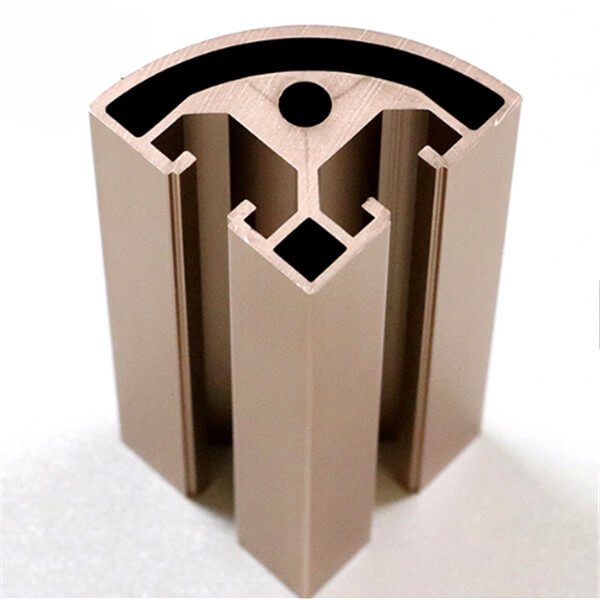

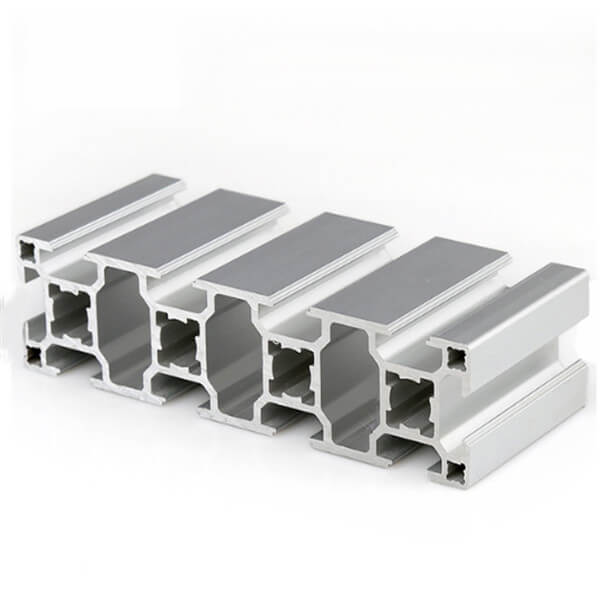

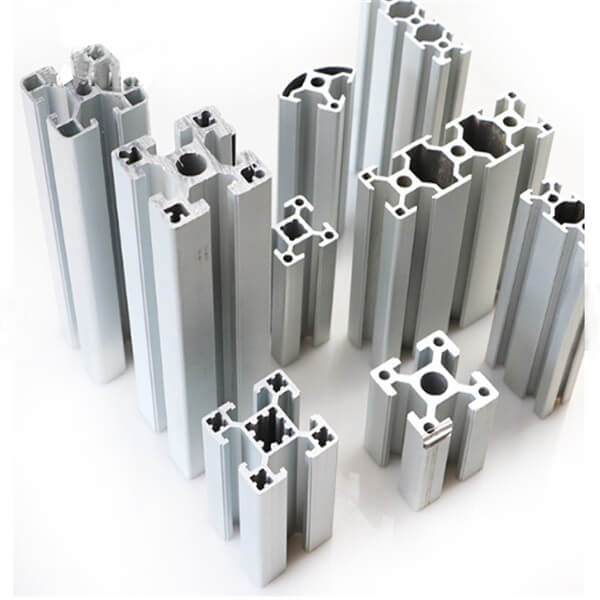

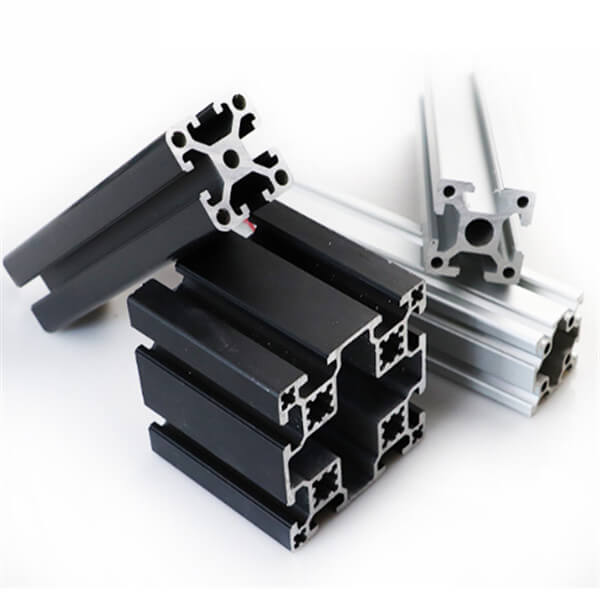

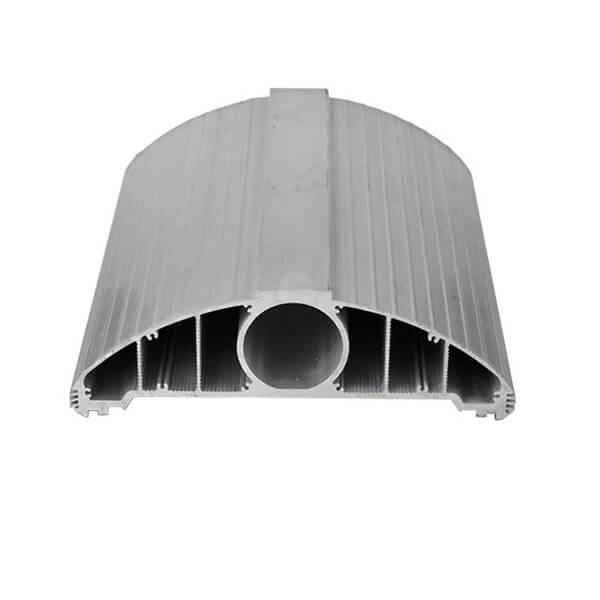

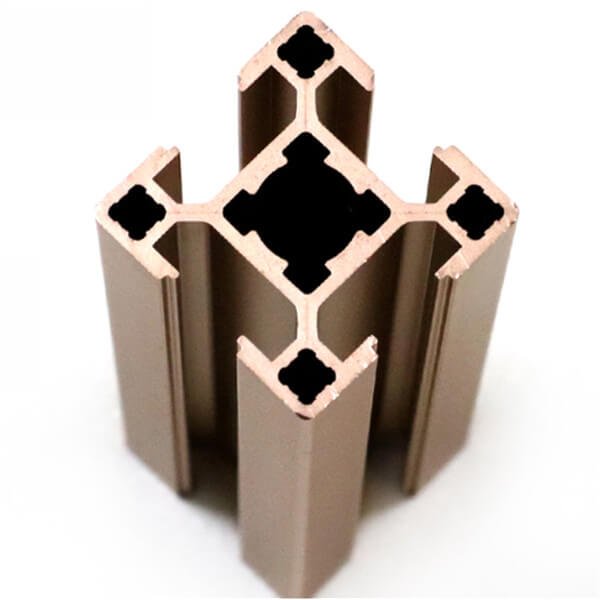

Product Showcase：
Factory Show:
Video Introduction:
Aluminium Alloy Chemical Composition:
| Aluminium Alloy Chemical Composition | ||||
| Alloy | 6063 (%) | 6063A (%) | 6061 (%) | 6082 (%) |
| Si | 0.2~0.60 | 0.3~0.60 | 0.4~0.80 | 0.7~1.30 |
| Fe | 0.35 | 0.15~0.35 | 0.70 | 0.50 |
| Cu | 0.10 | 0.10 | 0.15~0.40 | 0.10 |
| Mn | 0.10 | 0.15 | 0.15 | 0.40~1.0 |
| Mg | 0.45~0.90 | 0.60~0.90 | 0.80~1.20 | 0.6~1.20 |
| Cr | 0.10 | 0.05 | 0.04~0.35 | 0.25 |
| Zn | 0.10 | 0.15 | 0.25 | 0.20 |
| Ti | 0.10 | 0.10 | 0.15 | 0.10 |
| Other (each) | 0.05 | 0.05 | 0.05 | 0.50 |
| Other (total) | 0.15 | 0.15 | 0.15 | 0.15 |
| Al | Remainder | Remainder | Remainder | Remainder |
Material & Temper:
| Item | ALUMINUM PROFILE | ||||||
| Material | 6000 series Aluminium | ||||||
| Temper | T4 | T5 | T6 | ||||
| Size / Thickness | General profiles thickness from 0.8 to 5.0mm, length from 3m-6m or customized available; Anodize protection film thickness from 8~25 um, powder coating from 40 ~ 120 um. | ||||||
| Shape | Square | Round | Rectangular | Customized | |||
| Application | In furniture, windows&doors, decorations ,industry, construction and so on | ||||||
| Surface treatment | powder coating | electrophoresis | wood grain | anodized | Brushed | Polishing | |
| Colors | Ref powder coating color sheet and customized color available | ||||||
| Deep process | DCNC | Drilling | Milling | Cutting | Welding | bending | assembling |
| Certificate | CQM, SGS, CE, BV, SONCAP / GB, ISO, JIS, AS, NZS, QUALICOAT, QUOLANOD available | ||||||
Material & Temper:
| Material & Temper | Aluminum Alloy 6063-T5,6061-T6 |
| Film Standard | Anodized:7-23 μ , Powder coating: 60-120 μ , Electrophoresis film: 12-25 μ. |
| Length | 5.8M or Customized. |
| Thickness | 0.4mm-20mm or Customized. |
| Application | Building and Construction and Decoration. |
| Extrusion Machine | 600-3600 tons all together 6 extrusion lines. |
| Capability | Output 1000 tons per month. |
| Deep Processing | CNC / Cutting / Punching / Checking / Tapping / Drilling / Milling |
| MOQ | 500 kgs. Usually 10-12 tons for a 20’FT; 20-23 tons for a 40HQ. |
| OEM | Available. |
